AK4 Intelligent Cutting System
feature
Steel Spine Frame
Integrated welded body structure system

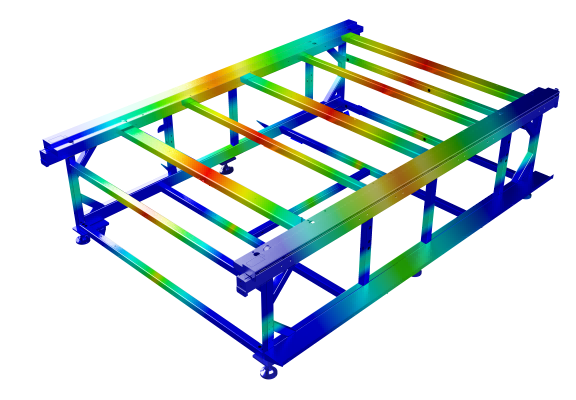

Finite Element Analysis
Finite Element Analysis

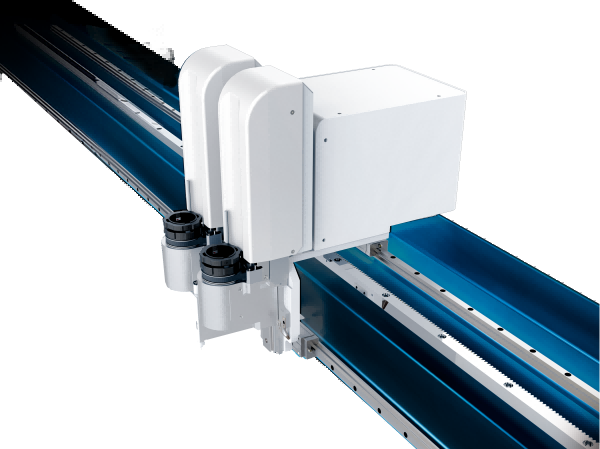

Symmetrical Upper and Lower Guide Rails
Symmetrical mechanics / optimized center of gravity

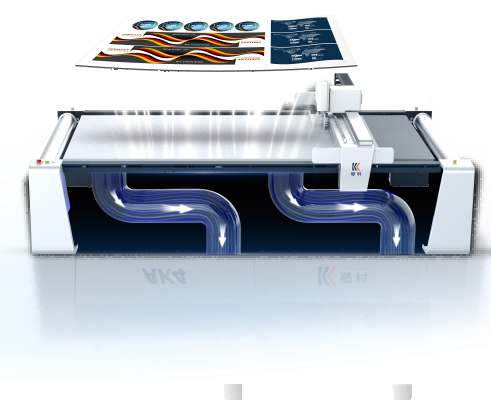

Smart Suction Pulse Vacuum Flow System
Suction power increased by 60%
Enhanced material fixation for more stable and precise cutting
Enhanced material fixation for more stable and precise cutting
application
IECHO AK4 Intelligent Cutting System is for single layer (few layers) cutting, can work on process automatically and accurately, like through cut, milling, V groove, marking, etc. It can be widely used in the industries of automotive interior, advertising, furniture and composite, etc. AK4 Intelligent Cutting System provides automated cutting solutions to variety of industries.
parameter
|
Model
|
AK4-2516 /AK4-2521 |
| Effective Cutting Area |
2500mmx1600mm/
2500mmx2100mm
|
|
Machine Size (L × W × H)
|
3450mmx2300mmx1350mm/
3450mmx2720mmx1350mm
|
|
Max Cutting Speed
|
1500mm/s
|
|
Max Cutting Thickness
|
50mm
|
|
Cutting Accuracy
|
0.1mm
|
|
Supported File Formats
|
DXF/HPGL
|
|
Suction media
|
Vacuum
|
|
Pump power
|
9KW
|
|
Power Supply
|
380V/50HZ 220V/50HZ
|
|
Operating Environment
|
Temp. 0℃-40℃, Humidity 20%-80%RH
|
