With the core advantages of high strength + low density, combined with the lightweight nature of the honeycomb structure, aramid honeycomb panels have become an ideal composite material for high-end fields such as aerospace, automotive, marine, and construction. However, their unique material composition and structure also create technical bottlenecks in cutting and processing that traditional methods struggle to overcome.
IECHO cutting equipment, with its precision, efficiency, and non-destructive cutting, is increasingly becoming the core solution for tackling the cutting challenges of aramid honeycomb panels.
1. Core Characteristics of Aramid Honeycomb Panels: The Source of Both Advantages and Cutting Challenges

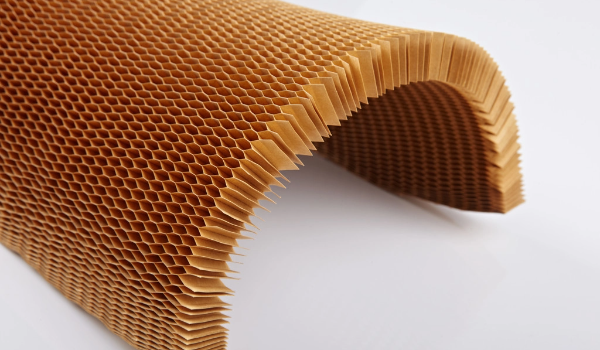

Aramid honeycomb panels are generally composed of two outer skins + a central honeycomb core. The outer layers rely on the mechanical properties of aramid fibers, while the inner layer leverages the structural benefits of the honeycomb configuration. Together, they form a unique performance combination that also dictates the special processing requirements for cutting.
Unique properties that make aramid honeycomb panels irreplaceable in high-end applications:
Mechanical performance: High tensile strength and impact resistance with low density; strength-to-weight ratio far exceeding traditional materials.
Environmental adaptability: High-temperature resistance (withstanding certain thermal loads) and corrosion resistance (resistant to chemical media).
Functional properties: The honeycomb structure creates closed cavities, providing excellent sound and thermal insulation.
Structural stability: The honeycomb core disperses pressure, offering high compressive strength and rigidity, and resisting deformation under load.
Cutting challenges resulting from these properties:
High-strength aramid fibers: Traditional mechanical cutting tools can cause excessive friction, leading to fiber “pulling” or rough cutting surfaces.
Fragile honeycomb core: The hollow thin-wall structure of the core is easily crushed or deformed by the compressive force of conventional “press-cutting” methods, undermining overall structural stability.
Varied thicknesses and shapes: Depending on the application, panel thickness can range from a few millimeters to several dozen millimeters, often requiring cutting of custom contours (e.g., curved profiles for aerospace parts), which fixed-parameter cutting methods struggle to handle.
Traditional methods previously used in the industry (manual shearing, mechanical tool cutting) face common problems when processing aramid honeycomb panels, directly impacting subsequent processing and final product quality:
Manual shearing: Uneven force and poor precision control lead to severely uneven cut surfaces, “wavy” edges, and local collapse of the honeycomb core due to hand pressure. This fails to meet assembly precision requirements (e.g., aerospace joints often require ±0.1 mm tolerances).
Mechanical tool cutting: The vibration and press-cutting nature of rotary tools cause:
Rough surfaces: Tool vibration during high-speed rotation can cause irregular fiber breakage and large burrs.
Core damage: Axial pressure from the cutting tool can crush the honeycomb core, damaging the cavity structure and reducing compressive strength.
Thermal impact (in some high-speed cuts): Frictional heat can soften aramid fibers locally, affecting mechanical properties.
2. IECHO Cutting Equipment: Core Solution for Aramid Honeycomb Panel Cutting Challenges
Precision cutting & smooth edges: High-frequency oscillation keeps the tool in a continuous “micro-shearing” motion with the material, producing clean, burr-free cuts without fiber pulling, meeting aerospace assembly precision requirements, and eliminating the need for post-grinding.
Non-destructive core protection: The low cutting force of oscillating knife technology avoids compressing the honeycomb core, acting only on the material along the cutting path. The core’s original cavity structure, compressive strength, and insulation performance remain intact, greatly increasing yield rates.
High processing efficiency: High-frequency oscillation reduces material resistance, significantly increasing cutting speed. Tool changes are minimal (only parameter adjustments are needed for different thicknesses), lowering per-unit time costs in mass production; ideal for automotive and aerospace large-scale manufacturing.
No heat-affected zone: The cutting process generates minimal frictional heat, keeping tool-material contact temperature low. This prevents aramid fibers from softening or degrading, making it especially suitable for temperature-sensitive, high-grade aramid honeycomb panels.
Flexible adaptability: Cutting depth, angle, and speed can be precisely adjusted via software, supporting flat, curved, and custom-profile cutting. It accommodates different thicknesses and shapes (e.g., arcs, folds, hollow structures) for diverse application needs.
With its superior material properties, aramid honeycomb has become a “rising star” in advanced manufacturing. However, the technical bottlenecks in cutting and processing have hindered broader adoption.
By leveraging the core features of low cutting force, no thermal damage, high precision, and high efficiency, IECHO cutting equipment not only resolves traditional issues like edge damage, core crushing, and insufficient accuracy but also preserves the original performance of aramid honeycomb panels; providing critical support for their deep application in aerospace, automotive, and construction sectors.
Looking ahead, as aramid honeycomb evolves toward thinner, stronger, and more complex profiles, oscillating knife cutting technology will advance toward higher frequency, smarter CNC integration, and more streamlined processing, further driving innovation in the composite materials processing industry.
