Traditional label die-cutting equipment suffers from two major operational pain points:
Downtime Delays: Troubleshooting relies heavily on field service engineers traveling to the site, causing order interruptions and delivery delays while waiting days for arrival.
Process Knowledge Loss: Process parameters across different substrates and label dimensions lack centralized storage. Machine setup relies on experienced master operators, leading to material waste during trial runs and knowledge loss when staff turn over.

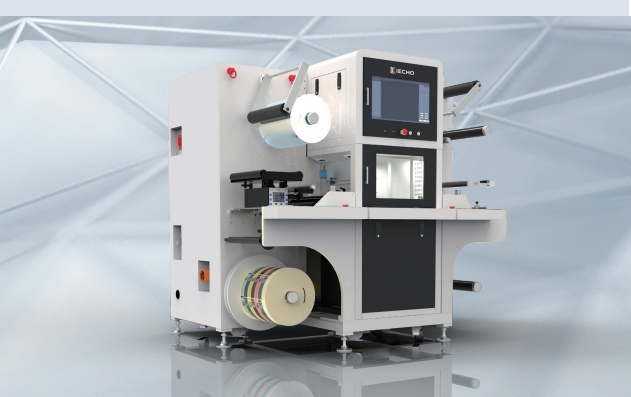

The IECHO LCT Series laser die-cutters integrate a remote diagnostic system and an onboard standardized cutting database, drastically lowering maintenance difficulty and reducing skill dependency.
Remote Diagnostic System:
Built-in 4G/Ethernet modules sync operational telemetry, optical path status, servo motor parameters, and tension logs to the cloud in real time.
If anomalies occur (e.g., laser power fluctuations, web guide offsets, unstable tension, or smoke alarms), managers can trigger remote assistance with one click.
Service engineers connect online to analyze runtime logs. Common issues, such as dust buildup in optics or shifted servo parameters, are resolved remotely, with most faults diagnosed and fixed within 10 minutes.
For hardware component failures requiring physical replacement, engineers pre-identify the required parts and arrive on-site equipped for a single-visit repair.
Smart Cutting Database:
Permanently stores full processing parameter sets for every label job: material substrate, thickness, laser power, fly-cutting speed, web tension, half-cut depth, web guide sensitivity, and slitting dimensions.
Once a job is completed, operators save the recipe file with one click. Repeat orders can be recalled instantly without trial cuts or recalibration.
Files can be categorized into folders (e.g., Coated Paper, PET, Brushed Gold/Silver, UV Specialty Materials), allowing novice operators to run proven processes confidently.
Low-Maintenance Hardware Design:
The sealed, dustproof Laser Box optical path (IP44 rating) isolates optics from workshop dust and humidity, extending cleaning intervals.
Smooth, mirror-finished exhaust ducts make routine wipe-downs quick and easy without complex disassembly.
Modular construction allows independent replacement of wear parts directly on the shop floor without waiting for service technicians.
A companion mobile app lets managers track operational hours, error logs, and consumable wear cycles to order spare parts proactively.
Remote Diagnostics: 10-minute online fault resolution via 4G/Ethernet Smart Recipe Database: One-click parameter recall for zero-trial setups
Maintenance Efficiency: Cloud log sync allows remote engineers to solve software/optical parameter issues quickly without on-site travel.
Material & Labor Savings: Preserved recipe databases eliminate test-run scrap and reduce reliance on veteran operators.
