Full-Dimensional Technical Empowerment for Intelligent Manufacturing of Flexible Materials
In processing fields such as textile and apparel, automotive interiors, aerospace, composite materials, soft home furnishings, medical supplies, luggage and footwear, outdoor products, and fabric toys, cutting equipment that offers automation, high precision, high efficiency, and high stability has become the core support for enterprises to improve quality, increase efficiency, and undergo transformation and upgrading.

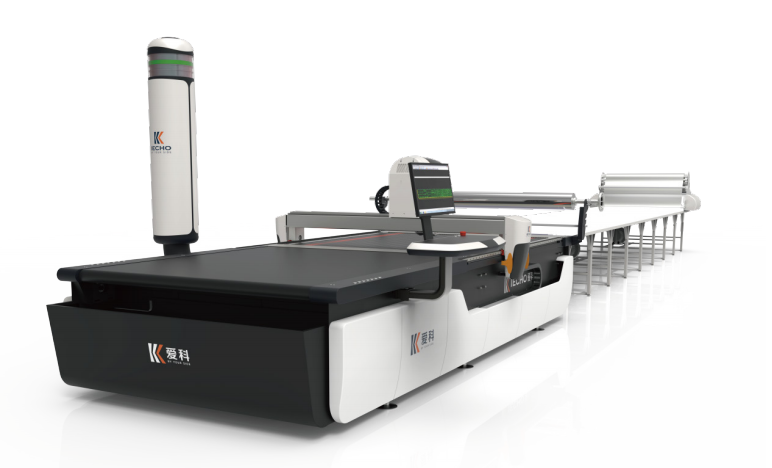

The IECHO GLSC Automatic Multi-Ply Cutting System, a mature flagship model on the market for many years with tens of thousands of hours of industrial validation, continues to lead the industry. Relying on full-dimensional core advantages; such as its one-piece molded steel structure, high-rigidity vacuum chamber, fully automatic continuous cutting, intelligent tool system, multi-functional process integration, and intelligent motion control; it has become the recognized benchmark for multi-ply cutting equipment for thousands of manufacturing enterprises worldwide.
Structural Rigidity and Long-term Precision
In terms of structural rigidity and long-term accuracy, the GLSC sets a new benchmark for reliability in the industry. The equipment’s frame is constructed from high-quality carbon structural steel and is processed into its final shape in a single operation using a large five-axis gantry milling machine. This eliminates the stress concentration and loss of precision associated with segmented welding at the source.
Combined with professional stress-relief annealing and non-destructive testing, structural hidden dangers are completely eliminated. This ensures that even after cross-regional transport, high-speed operation, day-and-night continuous production, and years of use, the equipment maintains micron-level precision without attenuation, significantly extending its service life. As the core component of multi-ply cutting, the vacuum chamber features a brand-new structural design, with a total deformation of ≤0.1mm under 35 kPa of pressure, achieving a leading level of rigidity. Meanwhile, the optimized ventilation duct layout achieves intelligent dynamic suction adjustment during the cutting process, requiring no secondary filming. This simplifies the production process, reduces consumable costs, and improves the stability of material adsorption and cutting consistency.
Production Efficiency and Spatial Utility
The GLSC achieves a double breakthrough in efficiency and space. The equipment is equipped with a fully automatic continuous cutting function using an innovative “cut-while-moving” mode. This breaks the segmented limitation of traditional cutting beds, where the process is “feed, stop, then cut”, eliminating waiting time between windows.
Combined with features like automatic fabric sensing, synchronous feeding with air blowback, pressurized window crossing, and seamless splicing of ultra-long pieces, the entire process requires no manual intervention, increasing overall cutting efficiency by more than 30%. Simultaneously, through structural optimization, the equipment reduces its footprint by 20% to 30%. Without sacrificing cutting width or capacity, it significantly improves workshop space utilization, making it suitable for both the tight layouts of small-to-medium factories and the large-scale production line planning of major enterprises.
Tool Systems and Process Adaptation
The GLSC covers the cutting needs of all materials and scenarios. The equipment is equipped with a high-speed intelligent sharpening motor imported from Switzerland, which automatically adjusts sharpening speed, angle, and pressure. It features three three types of abrasive sharpening accessories to quickly adapt to various fabrics, leathers, and composites, supporting rapid replacement with early warning alerts to ensure blades remain sharp and durable over the long term.

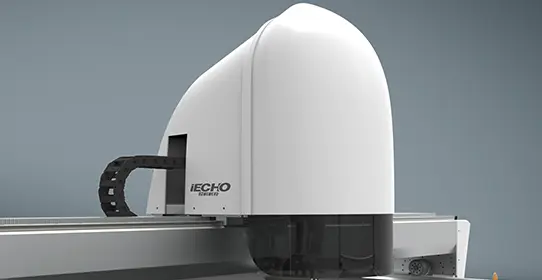

The high-frequency oscillating knife reaches a maximum speed of 6,000 RPM, with dynamic balance optimization to reduce operating noise. The blades are made of specially treated materials that are strong and resistant to deformation. Standard tool cooling functions effectively reduce issues like sticking, scorching, and delamination when cutting special fabrics or composites. This is paired with a floating cutter head design specifically to improve the accuracy of non-breathable fabrics, while the automatic bristle cleaner maintains optimal suction for stable, long-term production. Additionally, optional punching devices can complete three different hole specifications in one go, and the intelligent notch function can output multiple types and sizes of notches simultaneously to meet complex process requirements.
Intelligent Control and Precision Optimization
The GLSC empowers high-quality production through digital technology. It is equipped with the latest cutting motion control system featuring a zero-gap cutting function, which significantly improves material utilization and reduces raw material costs.
The intelligent speed optimization function automatically adjusts the speed based on the complexity of the shape and fabric characteristics, balancing efficiency and quality. The intelligent automatic compensation function corrects the cutting path based on fabric behavior and blade wear, ensuring dimensional consistency in mass production. Furthermore, the intelligent line merging function further enhances cutting efficiency. The equipment is easy to operate and highly compatible, interfacing with mainstream CAD/CAM software to achieve full data connectivity from design to nesting to cutting. It supports production monitoring, data traceability, and fault warnings to meet the digital transformation needs of modern enterprises.
Stable Operation and Cost Control
The GLSC reduces total lifecycle investment through high durability. The equipment is compatible with standard industrial voltages and maintains an energy-saving advantage with an average power consumption of only 15-25 kW·h even under high capacity. It can operate stably in environments ranging from 0°C to 43°C with a running noise of operating noise limited to 80 dB or lower.
With a maximum compressed cutting height of 90mm, a cutting speed of 90m/min, and an acceleration of 0.8G, its performance parameters are both powerful and stable over the long term. Core components are of reliable quality, wearing parts are easy to replace, and maintenance procedures are simple. By offering a low failure rate and minimal downtime, the system comprehensively reduces the total cost of ownership for enterprises, from procurement and use to maintenance and depreciation.
From the high-precision requirements of automotive interiors to the rapid-response production of apparel and home textiles, the IECHO GLSC continues to meet multi-industry production needs. As a mature and reliable classic model, it is not only a core piece of equipment for intelligent manufacturing but also a long-term partner for enterprises seeking to reduce costs, increase efficiency, and enhance their core competitiveness.
